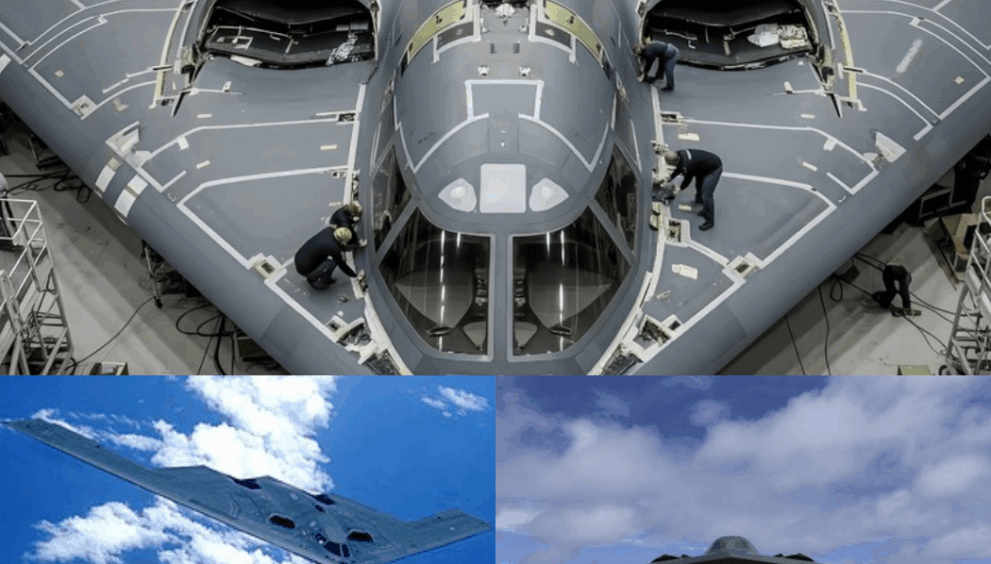

B-2 assembly

Assembling the B-2 Spirit: The Complex Art of Stealth Bomber Construction

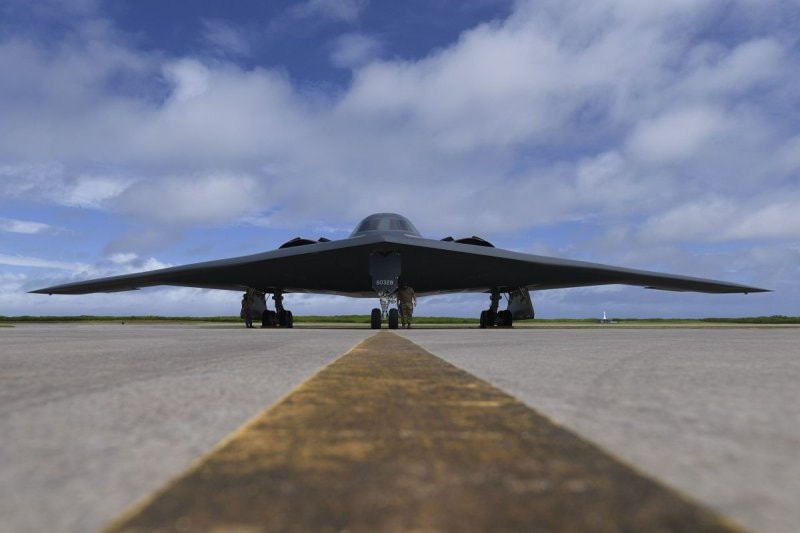

The Northrop Grumman B-2 Spirit is one of the world’s most iconic and secretive military aircraft. Famously known as the “Stealth Bomber,” its bat-like silhouette and radar-evading capabilities symbolize technological mastery and military ingenuity. But behind each mission-ready Spirit lies a remarkable feat almost as secretive and fascinating as its operational history—its assembly.

From Blueprint to Batwing

The journey of every B-2 began at Northrop’s assembly plant in Palmdale, California in the late 1980s and 90s—a facility designed specifically to accommodate the program’s unique needs. Unlike conventional aircraft, the B-2’s design called for a flying wing form with no vertical stabilizer, meaning every curve and seam had to serve function and stealth.

Developing the B-2 meant inventing entire new manufacturing methods, especially for its radar-evading surfaces. Special composite materials, exotic adhesives, and advanced coatings required climate-controlled “clean rooms” even during assembly—dust, static, or temperature fluctuations could compromise stealth.

Section-by-Section Construction

Fuselage & Wing Integration

The B-2 structure is composed of several major sections:

Center fuselage and cockpit module

Outboard wings

Engine pods and inlets

Control surfaces and elevons

The absence of sharp angles was intentional, helping to scatter radar signals. These sections, huge in their own right, were meticulously mated using laser-guided equipment and precision jigs. Every joint needed to be perfectly flush; even bolt heads had to be concealed to preserve stealth. Wing integration was especially challenging, as the stresses of flight would be spread out across the broad wingspan.

Advanced Materials

A revolutionary aspect of B-2 assembly was the use of carbon-fiber composites and radar-absorbing polymers. Teams layered and cured these materials in autoclaves, carefully embedding sub-structures and wiring looms during early stages—retrofits later would have been nearly impossible.

Internal Systems & Powerplant Installation

After basic structural mating, the real art began—a hidden labyrinth of wiring, hydraulics, environmental controls, and avionics systems. Specially shielded compartments protected sensitive electronics from electromagnetic interference and enemy detection.

The B-2’s four GE F118 turbofan engines were fitted inside the wing, their inlets given “S-curves”—a complex feat of aerodynamic and stealth engineering to ensure turbine blades were hidden from radar. Fuel tanks, landing gear, and weapon bays were all installed with precision and insulated to avoid compromising the aircraft’s ultra-low radar signature.

Stealth Coatings

One of the final steps: applying the B-2’s top-secret radar-absorbent coatings. This painstaking process involved layering multiple specialized paints and sealants, each mixed and applied under rigorous protocols. Imperfect application could ruin months of work, so technicians used ultraviolet lights and even X-rays to check for uniformity.

Secrets and Safeguards

Because the B-2’s design was (and remains) highly classified, extraordinary security surrounded its assembly. Crews worked in sealed and compartmented teams, with only a handful allowed to see the entire blueprints. Tools and electronic devices were carefully logged and shielded. Suppliers sometimes didn’t know what part they were making—a measure to prevent industrial espionage.

The elaborate safeguards extended to transportation. For major assembly stages, components were moved at night or inside sealed containers, away from satellites or prying eyes.

Testing and Birth of a Spirit

Once assembled, each B-2 was subjected to exhaustive ground checks. Engineers verified seamless systems operation and stealth performance using high-tech radar testing inside specially built echo-free “anechoic” chambers. Finally, the jet would be prepped, painted, and—after a series of tense taxi tests—take flight for the first time from Palmdale.

Legacy of Invisible Engineering

Building the B-2 was one of the most complex industrial challenges of the late 20th century. Only 21 B-2 Spirits were completed, each one representing years of labor, billions of dollars, and a triumph of material science, engineering, and secrecy.

Today, the lessons and methods pioneered on the B-2 assembly line echo in America’s next-generation stealth aircraft, ensuring that the ghosts over Palmdale continue to cast a long and mysterious shadow.

Sources:

Northrop Grumman archives

U.S. Air Force fact sheets

Books: Stealth: The Secret Contest to Invent Invisible Aircraft by Peter Westwick

Smithsonian Air & Space Museum

Declassified Project “Senior Ice” documents
