Setting the Fuse: The 8.8cm Shell and Germany’s High-Tech Zünderstellmaschine

In the high-stakes world of World War II artillery, fractions of a second could mean the difference between a shell exploding in the air above a target, or harmlessly after it buried itself deep in the earth. For the German military, famed for its engineering precision, the key to unlocking the full potential of its famed 8.8cm (88mm) artillery rested not just in the explosive power of the shells or the legendary design of the gun itself, but in a specialized, almost futuristic tool: the zünderstellmaschine, or fuse-setting machine.

The 8.8cm “Eighty-Eight” — A Battlefield Legend

The 8.8cm Flak gun—universally known as the “eighty-eight”—was a marvel of versatility and lethality. It could destroy tanks, shoot down aircraft, and bombard entrenched infantry. What made it so deadly wasn’t just its firepower, but its adaptability. At the heart of this adaptability was the shell fuze—a tiny, technically complex device installed at the nose (or occasionally the base) of the shell to control when and how it detonated.

Shell fuzes could be set to explode on impact (point-detonating), after a timed delay (time fuzes), or even to create airbursts for anti-aircraft fire (proximity and timed fuzes). Getting the timing just right was vital, especially for anti-aircraft roles, where a split-second determined whether the shrapnel shredded an enemy bomber or detonated harmlessly out of range.

The Zünderstellmaschine: Mechanical Precision Meets Battlefield Urgency

Enter the zünderstellmaschine. In English, this translates as “fuse-setting machine,” but the German device was much more than a simple mechanical timer. Before each shell was loaded into the breach of the gun, its fuze had to be set to detonate at a calculated point—midair, after a certain time, or on contact with the target.

For anti-aircraft batteries, this meant fuzes needed to be set rapidly and accurately, under immense pressure, as targets screamed through the sky at hundreds of kilometers per hour. The zünderstellmaschine mechanized the process:

• Manual or Powered Operation: Operators could either turn a dial to set the fuze mechanically, or, in more advanced variants, the machine could interface with the fire-control computer, automatically setting the precise time based on continually updated targeting calculations.
• Fast Throughput: With the gun’s high rate of fire—up to 15-20 rounds per minute under ideal conditions—the machine had to quickly and precisely “program” the fuzes on a continuous assembly line of shells.
• Higher Accuracy: By automating and standardizing a task that was once done by hand, the zünderstellmaschine reduced errors, sped up operations, and ensured that every shell could inflict maximum damage.

How Did It Work?

The process would look something like this at a typical Flak battery:

1. Fire Direction Center: Calculations are made using a combination of rangefinders, radar (later in the war), and electromechanical fire control computers, predicting the altitude, speed, and heading of the enemy aircraft.
2. Zünderstellmaschine Input: This targeting data, especially the calculated “time to detonation,” is relayed to the operator of the zünderstellmaschine.

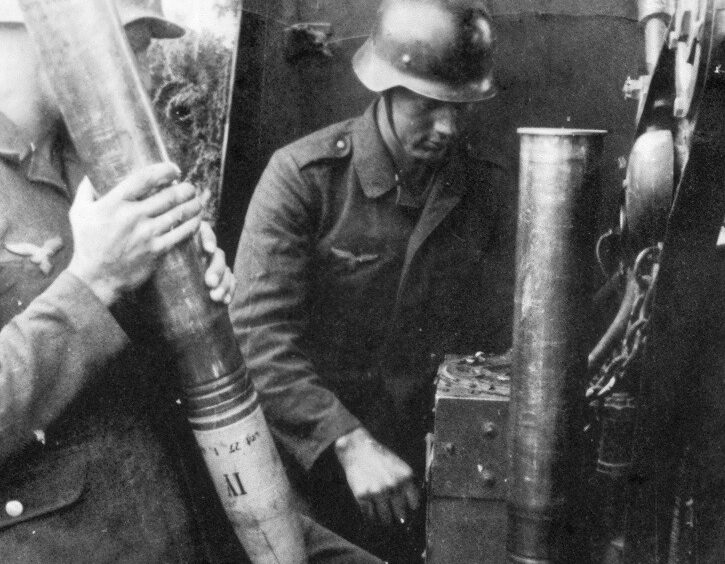

3. FuZe Setting: Each 8.8cm shell is brought to the machine. In early models, an operator dials in the time setting, inserts the nose of the shell into the device, and locks the fuse to the correct timing. In later models, the setting could be done semi-automatically as the machine is “slaved” to the central calculator.
4. Loading and Firing: The shell, now with a precisely set fuse, is loaded, fired, and—if all went well—detonates in the bomber formation at just the right height and moment, maximizing effect.

Impact on the Battlefield

While the 8.8cm gun’s firepower and flexibility were remarkable, the speed at which German crews could react to changing targets was thanks in no small measure to machines like the zünderstellmaschine. This sophisticated but robust device epitomized the German approach to warfare: combine advanced technology and careful coordination to create a force multiplier against overwhelming enemy numbers.

As the war went on, air attacks intensified. The need for accurate, high-volume anti-aircraft fire only grew, and the zünderstellmaschine became even more vital—as did the crews who operated it, racing against time under the thunder of engines and the glare of searchlights.

Legacy

Today, examples of zünderstellmaschine devices can be seen in military museums, often overlooked by visitors more captivated by the dramatic silhouettes of the 88 itself. Yet for those who understand artillery’s art and science, these unassuming machines represent a crucial part of the machinery of war—one that helped focus the full might of German gunnery with a twist of precision engineering.

In summary: The zünderstellmaschine was a small but critical cog in the mighty engine of the German artillery system. It brought science to the split-second business of war, ensuring that every thunderous 8.8cm shell had the best possible chance of changing the course of a battle—or a war.
